Group 65 Battery Dimensions
Battery Design |
---|
Dimensions and Sizes (Length x Width x Height) |
---|
12.0625'' x 7.5625'' x 7.5625'' Inches 306 x 192 x 192 Millimeters |
Group 65 Battery Post Terminals
Post Terminal Types and Locations | Posts Used |
---|---|
|
Type "A" or manufacturer's custom post design |
Group 65 Battery Voltage and Current Characteristics
Volts | Cells | CCA Range |
---|---|---|
12 | 6 | 540-880 |
Best Group 65 Batteries
List of recommended batteries
Good Choice
|

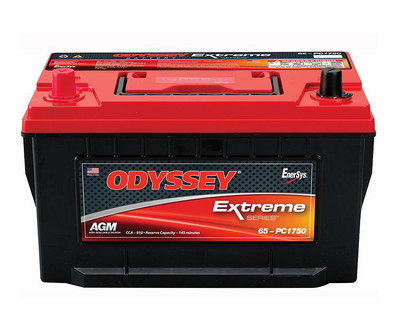

ODYSSEY 65-PC1750T Automotive and LTV Battery
|
Check Price |
Good Choice
|

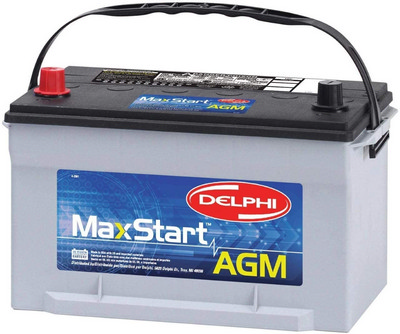

Delphi BU9065 MaxStart AGM Premium Automotive Battery, Group Size 65
|
Check Price |
Good Choice
|
Deka 9A65 AGM Intimidator Battery
|
Check Price |
Good Choice
|
Full Throttle FT930-65 (Group 65)
|
Check Price |
Good Choice
|
XS Power D6500 XS Series 12V 3,900 Amp AGM High Output Battery with M6 Terminal Bolt
|
Check Price |
Good Choice
|
Bosch S6551B S6 Flat Plate AGM Battery
|
Check Price |
Group 65 Alternatives and Closest Battery Groups by Dimensions
There are no direct interchangeable alternatives for group 65 battery if we speak about dimensions, but if your battery space hasn't strict limits, you can choose a little bigger or smaller battery group. If your battery compartment cannot accommodate a larger battery, you can choose a smaller one. In both cases, you must securely fasten your new battery with a battery holder. If your battery holder can't hold the alternative battery group, you can buy a universal battery holder to fit in different types of batteries.
Similar Battery Groups With the Same Length, Width and Voltage
These dimensions will fit you in 99% of cases when you want to use a different battery group instead of a 65 battery since most battery compartments have a height margin and strict limitations on height and width only, which match batteries in the table below. Please check the battery compartment before you buy a battery from this group.
Battery Group Number | Dimensions | Shape | Volts | Cells | Post Terminal Type |
---|---|---|---|---|---|
Group 65 Battery | 12.0625'' x 7.5625'' x 7.5625'' in. 306 x 192 x 192 mm |
12 | 6 | "A" | |
Group 66 Battery | 12.0625'' x 7.5625'' x 7.6875'' in. 306 x 192 x 194 mm |
|
12 | 6 | "A" |
Closest but not Identical Size Battery Groups
Battery groups in this section below are not identical to the group 65 battery, they can be a little bigger or smaller. Please pay attention to the post terminal types and their location
Closest Groups that Have Slightly Smaller Dimensions
Smaller batteries can have less capacity, performance, and power in comparison with 65 group.
Battery Group Number | Dimensions | Shape | Volts | Cells | Post Terminal Type |
---|---|---|---|---|---|
Group 65 Battery | 12.0625'' x 7.5625'' x 7.5625'' in. 306 x 192 x 192 mm |
12 | 6 | "A" | |
Group 77 Battery | 12.0625'' x 7.25'' x 8.75'' in. 306 x 184 x 222 mm |
|
12 | 6 | "A" |
Group 79 Battery | 12.0625'' x 7.0625'' x 7.375'' in. 307 x 179 x 188 mm |
|
12 | 6 | "S" |
Group 27R Battery | 12.0625'' x 6.8125'' x 8.875'' in. 306 x 173 x 225 mm Positive post on the Right |
|
12 | 6 | "A", "A2" |
Group 27 Battery | 12.0625'' x 6.8125'' x 8.875'' in. 306 x 173 x 225 mm |
|
12 | 6 | "A", "A2" |
Group 27H Battery | 11.75'' x 6.8125'' x 9.25'' in. 298 x 173 x 235 mm |
|
12 | 6 | "A" |
Group 41 Battery | 11.5625'' x 6.9375'' x 6.9375'' in. 293 x 175 x 175 mm |
|
12 | 6 | "A", "A1" |
Group 98R Battery | 11.125'' x 6.9375'' x 7.5'' in. 283 x 175 x 190 mm Positive post on the Right |
|
12 | 6 | "A1", "A2" |
Group 48 Battery | 11'' x 6.9375'' x 7.5'' in. 278 x 175 x 190 mm |
|
12 | 6 | "A", "A1", "A2" |
Group 91 Battery | 11'' x 6.9375'' x 6.9375'' in. 278 x 175 x 175 mm |
|
12 | 6 | "A1", "A2" |
Group 40R Battery | 11'' x 6.9375'' x 6.9375'' in. 278 x 175 x 175 mm Positive post on the Right |
|
12 | 6 | "A", "A1" |
Group 46 Battery | 10.75'' x 6.8125'' x 9'' in. 273 x 173 x 229 mm |
|
12 | 6 | "A", "A1" |
Group 24F Battery | 10.75'' x 6.8125'' x 9'' in. 273 x 173 x 229 mm |
|
12 | 6 | "A", "A2" |
Closest Large Dimensions
Bigger batteries can have more capacity and power compared to 65 batteries.
Battery Group Number | Dimensions | Shape | Volts | Cells | Post Terminal Type |
---|---|---|---|---|---|
Group 65 Battery | 12.0625'' x 7.5625'' x 7.5625'' in. 306 x 192 x 192 mm |
12 | 6 | "A" | |
Group 4DLT Battery | 20'' x 8.1875'' x 7.9375'' in. 508 x 208 x 202 mm |
|
12 | 6 | "A" |
Group 4D Battery | 20.75'' x 8.75'' x 9.8125'' in. 527 x 222 x 250 mm |
|
12 | 6 | "A", "B", "A2" |
Group 6D Battery | 20.75'' x 10'' x 10.25'' in. 527 x 254 x 260 mm |
|
12 | 6 | "A", "L" |
Group 8D Battery | 20.75'' x 11.125'' x 9.8125'' in. 527 x 283 x 250 mm |
|
12 | 6 | "A", "A2", "B", "B1" |
How to Get 24 Volts from 12V of a 65 Battery Group
If you need 24 Volts, you can connect two group 65 batteries in series to double the voltage. The voltage of a series connection is equal to the sum of the voltages of all its batteries. If one 12V lead-acid battery is connected to another 12V lead-acid battery, you have 24V total power output. Each battery must be fully charged and completely isolated from the other before connecting them in series, or there will be damage to at least one of them.
Increasing a Capacity of 65 Batteries with a Parallel Connection
If you need to increase current capacity and reduce charging time, connect batteries in parallel. When group 65 batteries are in parallel, their voltage is equal to the voltage of one battery, while current capacity equals to the sum of all its battery capacities. If you have two 12V lead-acid batteries with 60 Ah capacity and you connect them in parallel, you'll get 12 Volts with 120 Ah.
